TH-PF-100X100SW 平面光源
描述
CCS希希爱视 TH-PF-100X100SW 平面光源
| LED发光颜色 | White |
|---|---|
| 相关色温 | 5200 K typ. |

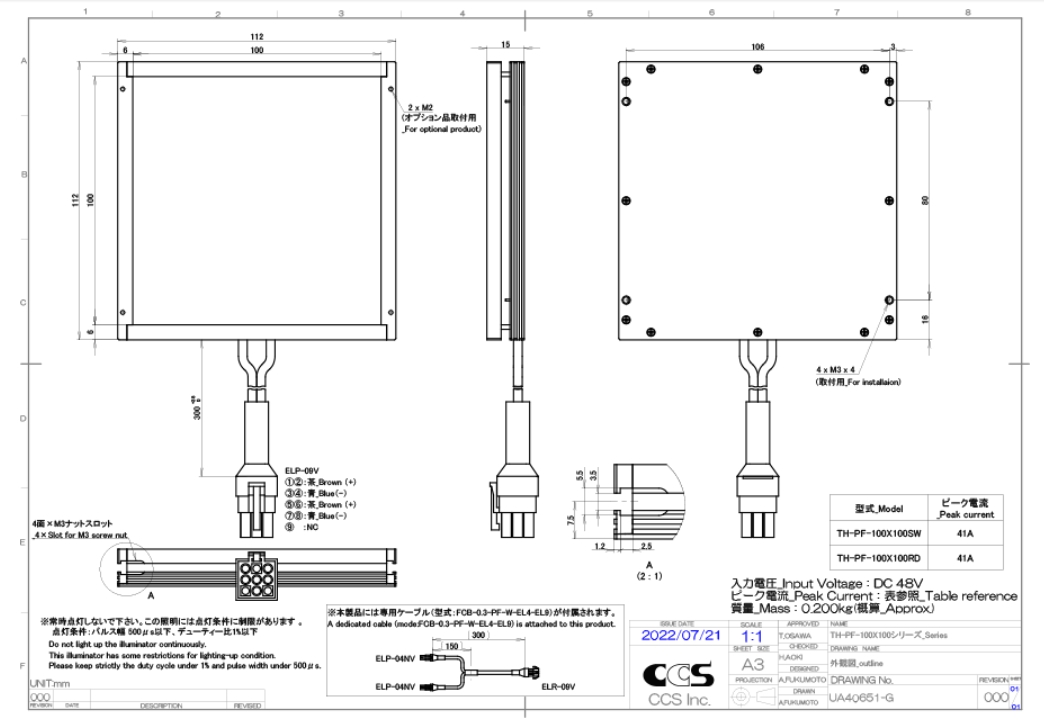

| 外观尺寸 | W 112 mm x D 112 mm x H 15 mm |
| 峰值电流 | 41 A |
| 输入电压 | 48 VDC max. |
| 极性, 信号 | 1,2: (+) / 3,4: (-) / 5,6: (+) / 7,8: (-) / 9: NC |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy, resin |
| 输入端口 | ELP-09V |
| 适合规格 | CE, UKCA, RoHS, IEC 62471（Exempt） |
| 使用温湿度 | Temperature: 0 to 40 °C, Humidity: 20 % to 85 %RH (with no condensation) |
| 保存温湿度 | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 200 g |
| 附属品 | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
| 备注 | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
