CCS希希爱视 LDLB-IP-300RD-N 条形光源
CCS希希爱视 LDLB-IP-300RD-N 条形光源 LED发光颜色 Red 峰值发光波长 630 nm typ. 外观尺寸 W 320 mm x D 70 mm x H 32 mm 输入电压 24 VDC (rating), 22.8 to 26.4 VDC (range) 消耗功率 24 W max. 外壳材质 Aluminum alloy, resin 输入端口 M12 (5 pins, plug) 适合规格 CE, UKCA, RoHS, IEC 62471（Exempt） 使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) 保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) 冷却方式 Natural air-cooling 重量 500 g max. 附属品 使用说明书 注意事项 * The power supply for daisy-chained Light Units must provide sufficient output for all of the Light Units.When the Light Units are used in overdrive mode, the power supply must provide 6 A or more for each Light Unit. 手机/微信：13682357734 电话：0755-84690029 ...
分类：
货号：
LDLB-IP-300RD-N 条形光源
描述
CCS希希爱视 LDLB-IP-300RD-N 条形光源
| LED发光颜色 | Red |
|---|---|
| 峰值发光波长 | 630 nm typ. |

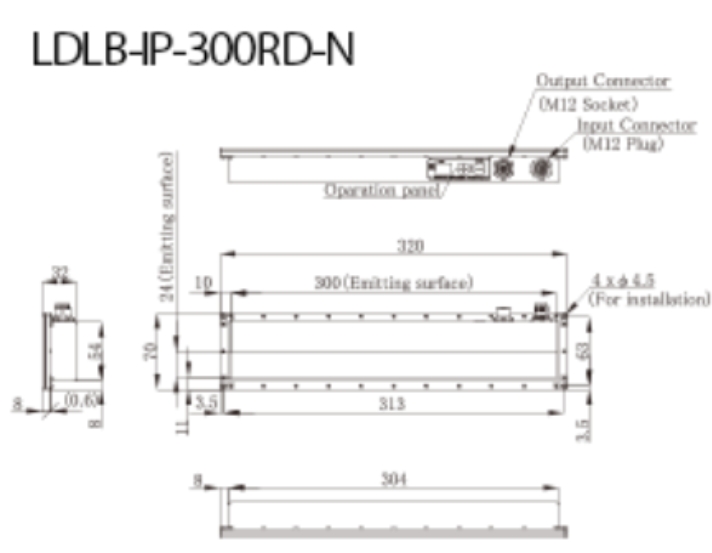

| 外观尺寸 | W 320 mm x D 70 mm x H 32 mm |
| 输入电压 | 24 VDC (rating), 22.8 to 26.4 VDC (range) |
| 消耗功率 | 24 W max. |
| 外壳材质 | Aluminum alloy, resin |
| 输入端口 | M12 (5 pins, plug) |
| 适合规格 | CE, UKCA, RoHS, IEC 62471（Exempt） |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 500 g max. |
| 附属品 | 使用说明书 |
| 注意事项 | * The power supply for daisy-chained Light Units must provide sufficient output for all of the Light Units. When the Light Units are used in overdrive mode, the power supply must provide 6 A or more for each Light Unit. |
