MORITEX茉丽特 远心镜头 MML2-ST65DS
MORITEX茉丽特 远心镜头 MML2-ST65DS 规格 Spec MML2-ST65DS Coaxial Illumination ○ Magnification 2.00±5% WD (mm) 65 Resolution (μm) 4.6 Depth of Field (mm) 0.14 NA 0.073 Effective Fno 27 Distortion (%) 0.005 Weight (g) 37 Largest Compatible Sensor 1/2" type Mount C mount * Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)* Resolution values indicate the theoretical resolution at a wavelength of 550nm. 0755-84690029 手机/微信：13682357734 QQ:2844337877...
分类：
描述

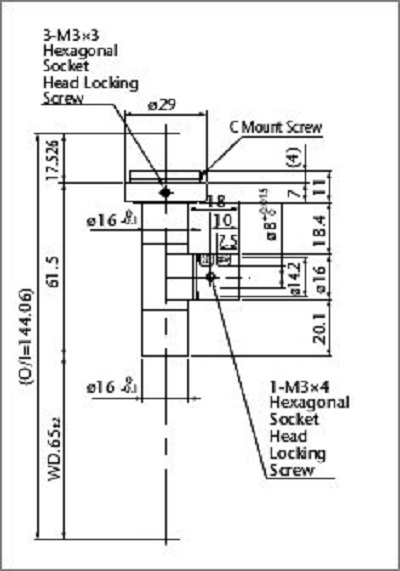

MORITEX茉丽特 远心镜头 MML2-ST65DS
规格
|
Spec |
MML2-ST65DS |
|
Coaxial Illumination |
○ |
|
Magnification |
2.00±5% |
|
WD (mm) |
65 |
|
Resolution (μm) |
4.6 |
|
Depth of Field (mm) |
0.14 |
|
NA |
0.073 |
|
Effective Fno |
27 |
|
Distortion (%) |
0.005 |
|
Weight (g) |
37 |
|
Largest Compatible Sensor |
1/2" type |
|
Mount |
C mount |
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
